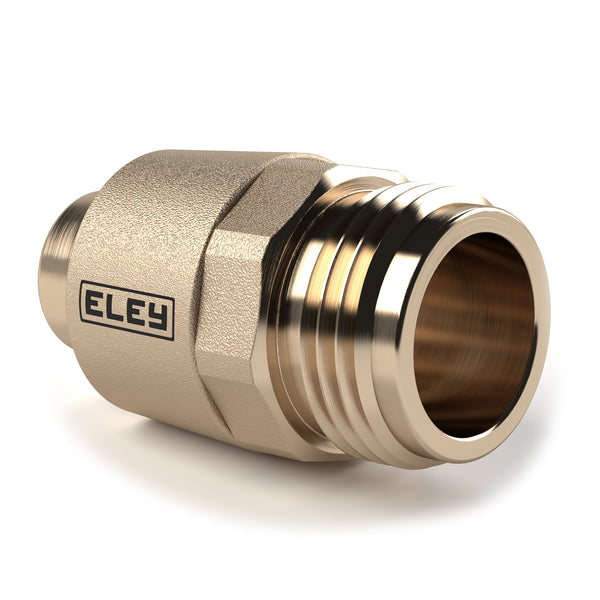

Garden Hose Fitting for 5/8-Inch ID Hose, Male
DIY factory-quality hose fitting repair and replacement. Fits most brands of 5/8-inch ID garden hose. Requires the use of ELEY repair tool.
This male fitting can ONLY be installed with the ELEY repair tool
The ELEY male garden hose fitting can ONLY be crimped to a 5/8-inch garden hose with the use of the ELEY Garden Hose Fitting Repair Tool, item #1186. If you don't already own the repair tool, you'll want to follow the first link below and purchase the repair tool as well.
Replace Damaged Male Hose Fittings with Factory-Quality Crimping
Use this innovative tool from ELEY to professionally crimp this drinking-water-safe, lead-free ELEY male brass fitting onto a 5/8-inch garden hose! The only after-market kit that delivers a FACTORY-QUALITY crimping and hose fitting repair.
- Do-it-Yourself Factory-Quality Crimped Hose Fittings.
- Replace Damaged Male Hose Fittings.
- Will work on most brands of 5/8-inch ID garden hose. See photo of Flexzilla repair.
- Lead-Free Brass Fittings, 100% Drinking Water Safe.
- 5/8-Inch FULL Flow Fittings.
Make Custom-Length Garden Hose
You can create a custom-length hose by cutting a standard-length garden hose to the desired length (measuring from the female fitting) and then crimp on this ELEY male fitting. Standard lengths of ultra-durable ELEY polyurethane garden hose (in feet) are 6-1/2, 12, 25, 50, 75, 100, 125, 150, 175, and 200 feet. For example, say you want a 17-foot hose.
- Buy 1) the ELEY Repair Tool, 2) this ELEY male fitting, and 3) a standard 25-foot hose.
- Measuring from the female fitting, cut the 25-foot hose down to a 17-foot length. View Hose Cutting Details
- Using the ELEY repair tool, crimp the new ELEY male fitting onto the cut end of the 17-foot hose.
Make Custom Hoses with Two Male Fittings
Need a hose equipped with two male fittings? No problem. Simply cut off the female fitting and, using our repair tool crimp this fitting on in its place.
How it Works - Instructional Video
Watch this video to see how the repair tool works with the ELEY male fitting.
Frequently Asked Questions - Male Hose Repair Fitting
Can I buy the ELEY polyurethane garden hose without fittings on the ends?
No. We only sell our polyurethane hose in finished, standard-length assemblies, which include one male and one female fitting.
Does ELEY still make custom-length hoses?
No. Instead, we now offer this repair tool, our full-flow & lead-free brass fittings, and our standard-length polyurethane garden hose from which you'll be able to make your own custom-length hose. Because of the labor-intensive processes involved in making custom-length hoses, we charged considerably more per foot than our standard-length hoses. With this process, you'll end up with two custom-length hoses (should you also choose to crimp a fitting onto the other cut length) and a garden hose fitting repair tool that can be used to install factory-quality crimped fittings onto almost any brand of garden hose for years to come. No more cheap after-market fitting repairs from the big box or hardware stores.
Do the fittings and the repair tool work in repairing non-ELEY brand hoses?
We have tested our repair tool and fittings on many hose brands, but not all of them. The outside diameter (OD) range of 5/8-inch hose for effective use with the ELEY garden hose repair fittings is 0.85 to 0.90 inches. We would not recommend it for any collapsible (or self-retracting) hose, hoses with a metal cover, or hoses that have a multi-sided cover, like the one pictured. The tool and fittings are designed for a 5/8-inch ID garden hose ONLY.
What is the MIN and MAX hose OD measurements for these repair fittings to work?
A successful repair isn’t so much dependent on the outside diameter (OD) of the hose as it is the wall thickness. Minimum thickness would be 0.10 inch and maximum would be 0.15 inch. Circular hose shapes only, no polygons. If it is more convenient for you to use the outside diameter (OD) of 5/8-inch hose for effective use with the ELEY garden hose repair fittings, you'll want to look for an OD measurement from 0.85 to 0.90 inches.
Can an ELEY hose fitting be reused if cut off a hose?
No, they cannot be reused. There is no acceptable method for successfully separating the collar and barbed fitting once they are pressed together.
Are the fittings drinking water safe?
Yes. Our fittings are made from lead-free brass and are 100% drinking water safe.
Do you offer a tool and repair fittings in a 3/4-inch ID?
No. Sorry. 5/8-inch ID hose only.
Are any other tools needed with this repair tool?
We provide a hex key wrench for use with the repair tool. You can speed the process up by using a power drill with a 5 mm hex bit. You'll need to use a cutting tool of your choice for cutting the garden hose, where you'll press on and attach the new ELEY fitting.
I don't see my question in this list.
Still need assistance? Please Contact Us
